Technical Parameter

No.1-2 sets 45t/15t QDY Metallurgical Double Girder Overhead Crane:

(1) Capacity: 45t/15t;

(2) Span: 22m;

(3) Lift Height: 16m;

(4) Lift Speed (Main Hoist): 7.7m/min;

(5) Lift Speed (Aux Hoist)：10.5m/min;

(6) Cross Travel Speed: 27m/min;

(7) Crane Travel Speed: 45m/min;

(8) Work Class: A7

(9) Cabin Control

(10) Work Voltage: 415V, 50HZM 3PH

(11) Application: Hot Metal

(12) Temperature: Summer-Max 60℃/Winter-Max-10℃

No. 2-2 sets 20t/10t QDY Metallurgical Double Girder Overhead Crane:

(1) Capacity: 20t/10t;

(2) Span: 22m;

(3) Lift Height: 16m;

(4) Lift Speed (Main Hoist): 9.8m/min;

(5) Lift Speed (Aux Hoist)：13.3m/min;

(6) Cross Travel Speed: 36.8m/min;

(7) Crane Travel Speed: 21m/min;

(8) Work Class: A7

(9) Cabin Control

(10) Work Voltage: 415V, 50HZM 3PH

(11) Application: Scrap charging and ladle handle

(12) Temperature: Summer-Max 60℃/Winter-Max-10℃

No. 3-2 sets 20t/10t QDY Metallurgical Double Girder Overhead Crane:

(1) Capacity: 20t/10t;

(2) Span: 22.15m;

(3) Lift Height: 14m;

(4) Lift Speed (Main Hoist): 9.8m/min;

(5) Lift Speed (Aux Hoist)：13.3m/min;

(6) Cross Travel Speed: 36.8m/min;

(7) Crane Travel Speed: 21m/min;

(8) Work Class: A7

(9) Cabin Control

(10) Work Voltage: 415V, 50HZM 3PH

(11) Application: Scrap charging and ladle handle

(12) Temperature: Summer-Max 60℃/Winter-Max-10℃

Detailed Informaiton

Delivery of 6sets QDY Metallurgical Double Girder Overhead Cranes on last month, which were exported to Indian steel factory(They have ordered another 8sets QD Double Girder Overhead Crane from us earlier).

Our Henan Dafang Heavy Machinery Co.,Ltd will try our best to offer the most suitable design for our client. Welcome to connect with us any time if you have need of gantry crane, overhead crane etc!

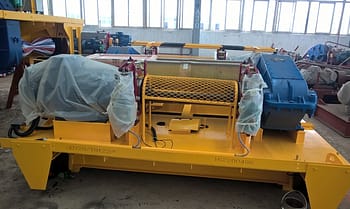

20t 10t Winch

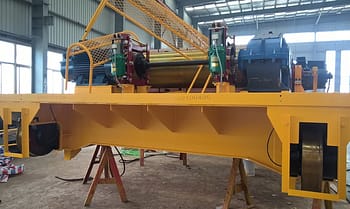

45t 15t Winch with Raincloth (2)

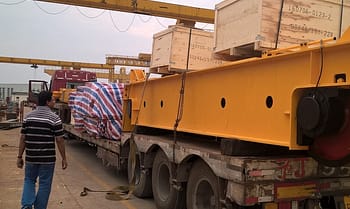

Client Come to make test and supervise the load (1)

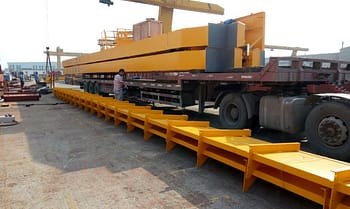

Delivered by Bulk

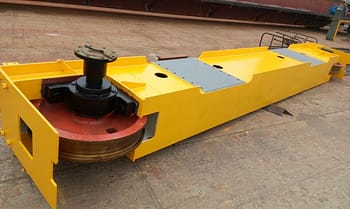

End Beams

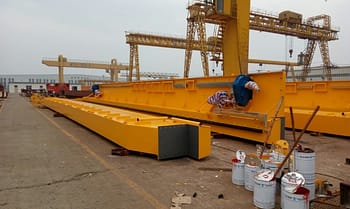

Main Beams after Painting
